ColorBlast® 12 是一款外观时尚的紧凑型泛光灯具，能产生颜色丰富和亮度均匀的照明效果，并能实现多种颜色变化。

特点：

1、灵活的布灯方式；

2、灵活可靠的控制方式；

3、安装简单方便。

产品尺寸：

配光曲线：

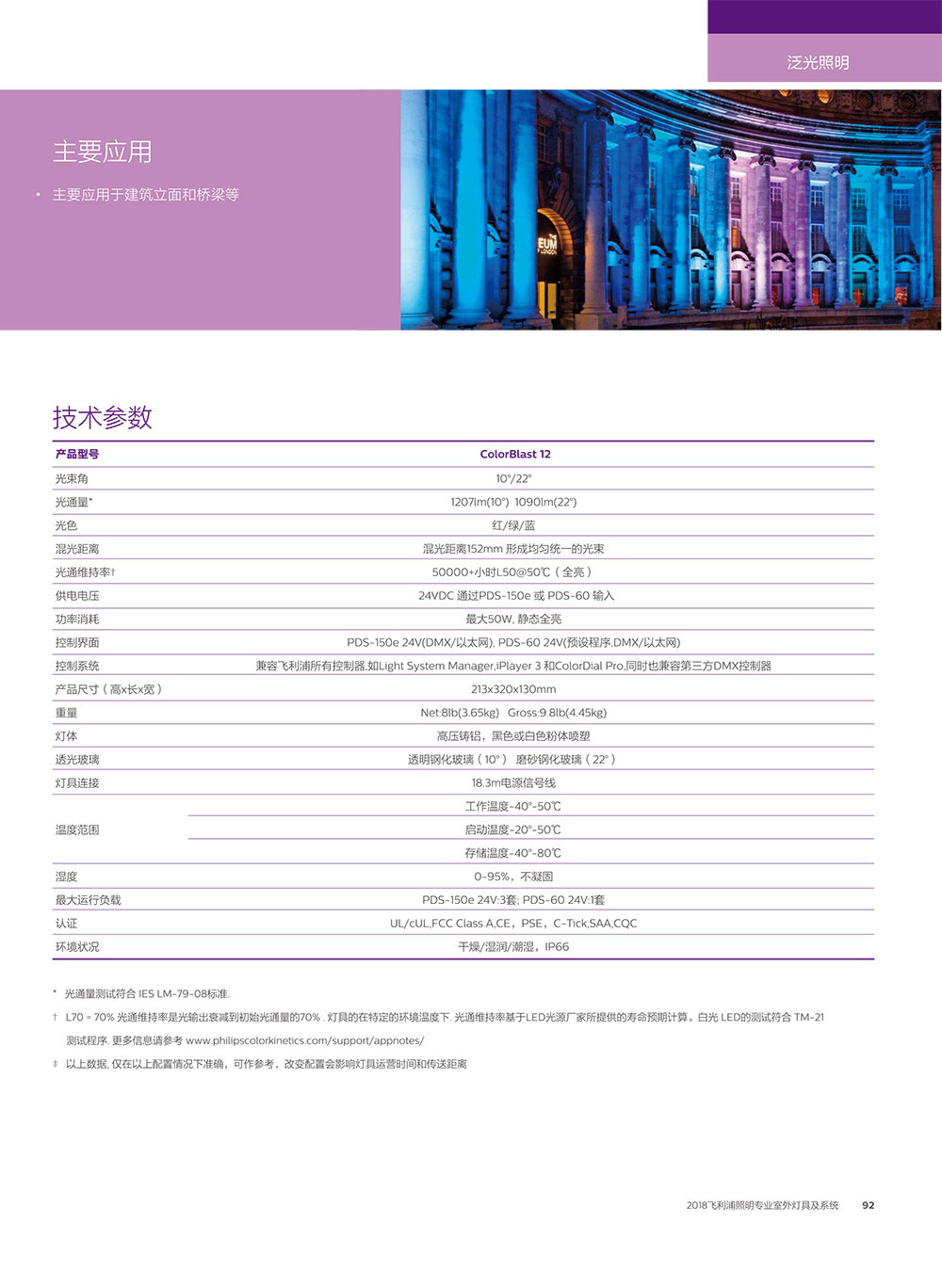

产品规格：

• 产品类型 BCP461
• 光源 Integral LED-module
• 功率（全功率输出，最大稳态）BCP461: 50W
• 光束角 BCP461: 10º (clear glass) or 22º(frosted glass)
• 光通量 BCP461: 1207 lm (10º), 1090 lm (22º)
• 光效 BCP461: 16.9 lm/W (10º, clear glass) or 15.3 lm/W (22º, frosted glass)
• 流明输出维护 L50 50,000 hours at 25ºC
• 可操控温度范围-40 to +50ºC
• 驱动器Integrated
• 电源/数据源 PDS-150e，supply for Ethernet and DMX installations PDS-60 24 V，supply for indoor and outdoor applications
• 电源电压 220 - 240 V AC / 50-60 Hz
• 电源24 V DC
• 调光0 to 100% via DMX or Ethernet control
• 控制系统 Compatible with full range of Philips controllers, including Light System Manager, and iPlayer 3
• 材质 Housing: die-cast aluminum ；Cover: clear tempered glass or softfocus
• 颜色 Black (BK) or white (WH), powder coated finish
• 连接18.3 m unified power/data cable, standard, 45.7 maximum 121.9 m total per power/data supply
• 安装 Surface mounted Locking base swivel: after-installation rotation up to 350º rotation Locking fixture rotation: 110º
• 备注Power/data supply enabler, controls equipment and cables to be ordered separately.
